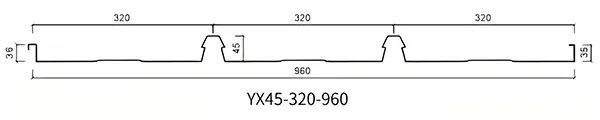

    YX45-320-960

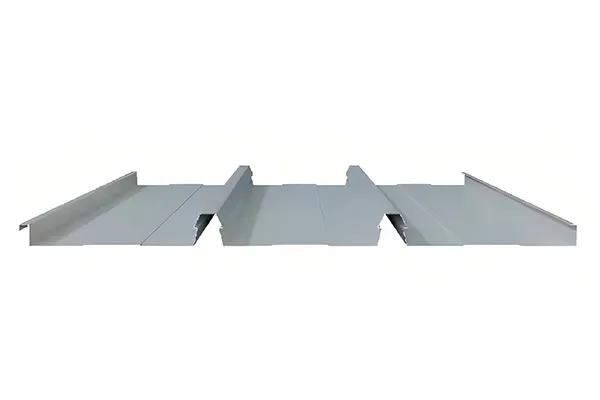

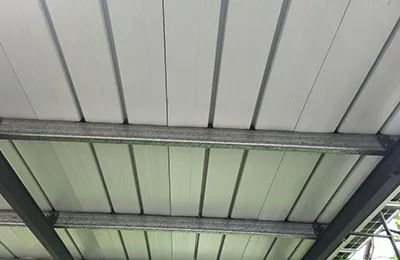

    Concealed Fix Roofing Sheets for BIPV System

    Roll-formed metal roof sheeting designed for the direct mounting of solar panels without using rails

    • Effective width: 960mm/760mm
    • Overall width of sheet: 1200mm/1000mm
    • Length: 1m-12m (customizable)
    • Thickness: 0.4mm-1.0mm
    • Material: Galvanized steel sheet, galvalume steel sheet, aluminum alloy sheet (customizable strength)
    Request a Quote
    • Concealed Fix Roofing Sheets for BIPV System
    • Concealed Fix Roofing Sheets for BIPV System
    • Concealed Fix Roofing Sheets for BIPV System
    • Concealed Fix Roofing Sheets for BIPV System

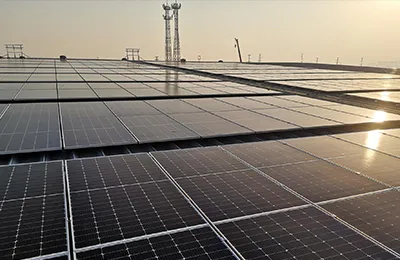

    Patented concealed-fix roofing sheets are designed for photovoltaic projects, offering durability and efficient solar integration. Each panel connects through a 360° interlocking seam within the concealed-fix system, providing strong resistance to wind and water. Solar modules can be mounted directly with clips, without drilling or extra rails. This design protects the roof surface, speeds up installation, and reduces both material use and labor costs, making it a practical choice for large-scale solar projects.

    Applications

    These concealed-fix roofing sheets are suitable for both industrial and residential roofs. They are widely used in public buildings such as schools, hospitals, shopping centers, and community housing. They are also a practical solution for roof renovations, including old factories and the upgrading of existing buildings.

    Certifications & Compliance

    Our operations are certified to ISO 9001, ISO 14001 and ISO 45001. For international projects, we can also arrange project-specific third-party testing and support market-specific product approvals across North America, the European Union, Southeast Asia, Australia and New Zealand. Available compliance documentation includes ASTM test reports, CE marking, CIDB certification, and other approvals that can be provided according to specific project requirements.
    Specifications
    Model YX45-320-960
    Effective cover width 960mm/760mm
    Overall width of sheet 1200mm/1000mm
    Length 1m-12m (customizable)
    Thickness 0.4mm-1.0mm
    Material Galvanized steel sheet,galvalume steel sheet,aluminum alloy sheet (customizable strength)
    Metal sheet suppliers Baosteel,BlueScope,Yieh Phui,Wah Tung,Alliance Steel,etc.
    Color Standard color + custom color
    Surface coating PE/HDP/PVDF,etc.
    Lifespan At least 30 years
    Applications Architectural roof and wall cladding
    Remarks 1. Installation support is available from our technical team to ensure proper setup
    2. All necessary accessories for integrating solar panels with the roofing system are included
    3. Customized options are also available to match different project requirements
    Features
    • The panels are secured both to the purlins and through their concealed seam, which gives the roof a double layer of protection. This design makes it highly resistant to strong winds and reliable even in regions that experience typhoons.
    • Solar modules can be locked in place with simple clips, so installers don’t need to worry about the size or type of panel being used, it all fits without limitations.
    • Since there’s no need for aluminum rails, clamps, or adaptors, the system cuts down on extra materials and labor. As a result, the total investment is lower than with conventional solar roofing.
    • Each roofing sheet has a wide profile, which means fewer pieces are needed and installation moves faster. For contractors, this improves efficiency on-site and keeps overall project costs under control.
    • The surface has self-cleaning properties and strong resistance to weather and corrosion, so the panels stay in good condition for years while requiring very little maintenance.
    Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors

    Need more colors? Feel free to get in touch!

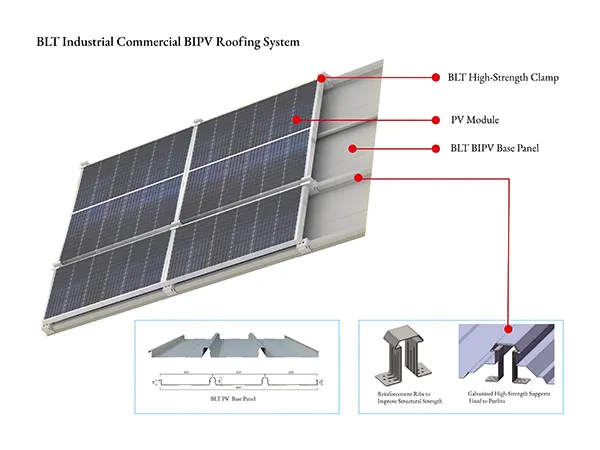

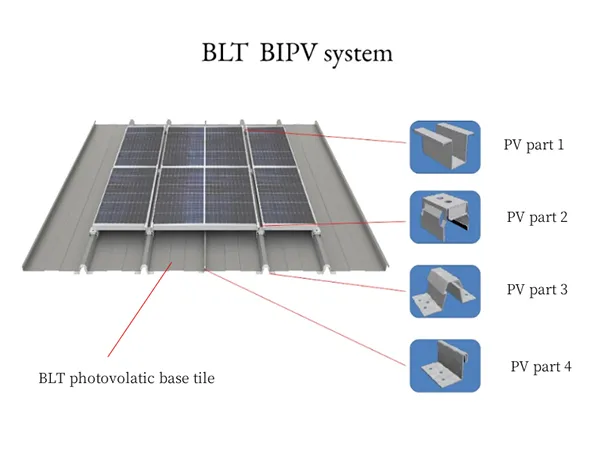

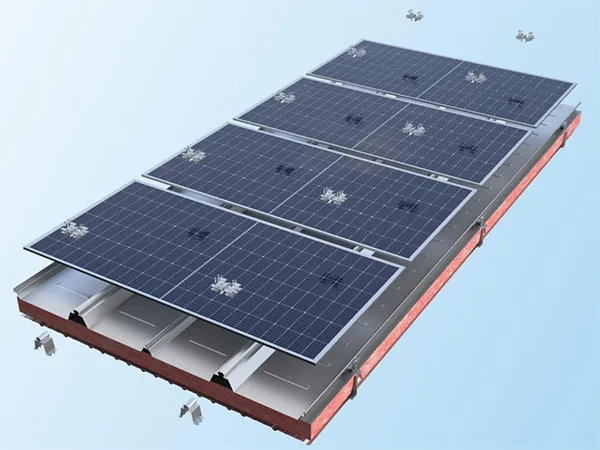

    Installation Guide
    • Installation Guide
    • Installation Guide
    • Installation Guide
    Get in Touch

    Tell us about your construction project today!

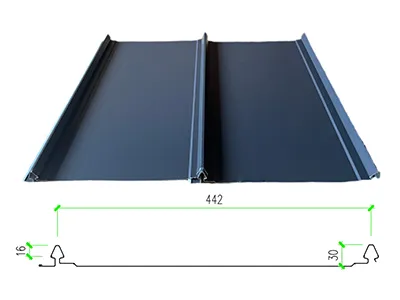

    Related Solar Roof Panels
    Metal Building Panels
    Discover All Products

    In building-integrated photovoltaics (BIPV), the metal sheets are usually made from galvalume steel or aluminum-magnesium-manganese alloy. Both are lightweight, resistant to corrosion, and designed for long service life. For example, aluminum-magnesium alloys can last up to 50 years in normal conditions, which makes them very reliable for roofing applications.

    Yes. Solar roof panels are flexible enough to be used on flat or sloped roofs. The actual tilt angle depends on the local climate and the hours of effective sunlight. In regions with lower solar exposure, adjusting the angle helps improve energy efficiency.

    Compared to single-layer roofing sheets, insulated solar roof panels have a layered design. When rigid polyurethane foam is used as the core, it improves thermal and acoustic performance. This reduces common issues such as rain noise, wind impact, and outside mechanical sounds, so they are suitable even for hospitals, schools, or residential projects where a quieter environment is important.

    For areas exposed to high winds and typhoons, standing seam metal roofs with a 360° seam clamps are recommended because the panels interlock securely and resist uplift. Concealed fixed roofing sheets are also an option; they offer strong wind resistance without visible fasteners, which also improves durability and appearance.
