    YX65-185-555

    Steel Floor Decks

    65mm depth×555mm width metal decking profile

    • Effective cover width: 555mm
    • Overall width of sheet: 1000mm
    • Length: Customizable
    • Thickness: 0.75mm-1.2mm
    • Material: Galvanized steel sheet, galvalume steel sheet
    Request a Quote
    • Steel Floor Decks
    • Steel Floor Decks
    • Steel Floor Decks
    • Steel Floor Decks

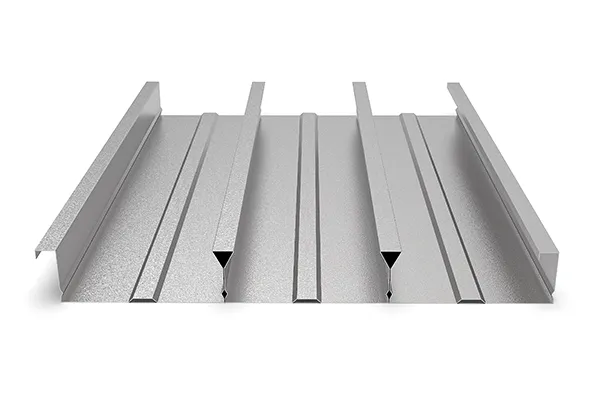

    These closed profile metal floor decks are designed with a rib height of 65mm, rib spacing of 185mm, and an effective cover width of 555mm. The closed profile structure creates a stronger bond with concrete, delivering high load capacity, reliable seismic performance, and better fire resistance than open profiles.

    Applications

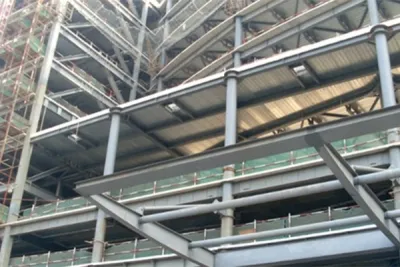

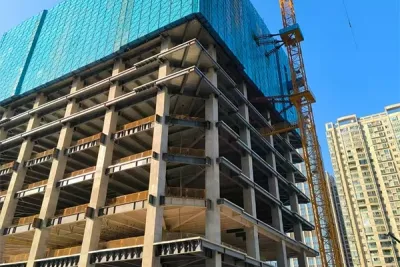

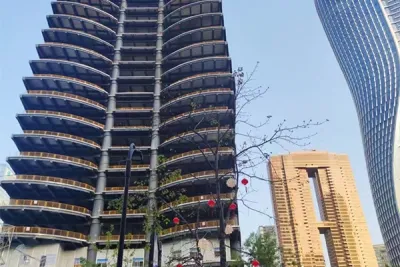

    Closed profile metal floor decks are widely used in high-rise steel structures, industrial plants, shopping centers, airports, railway stations, stadiums, and other large-scale projects that require strength, fire safety, and efficient installation.

    Certifications & Compliance

    Our operations are certified to ISO 9001, ISO 14001 and ISO 45001. For international projects, we can also arrange project-specific third-party testing and support market-specific product approvals across North America, the European Union, Southeast Asia, Australia and New Zealand. Available compliance documentation includes ASTM test reports, CE marking, CIDB certification, and other approvals that can be provided according to specific project requirements.
    Specifications
    Model YX65-185-555
    Effective cover width 555mm
    Length Customizable
    Thickness 0.75mm-1.2mm
    Material Galvanized steel sheet, galvalume steel sheet
    Metal sheet suppliers Baosteel, BlueScope, Yieh Phui, Wah Tung, Alliance Steel, etc.
    Lifespan At least 30 years
    Mounting accessories included A full range of shear studs, self-tapping screws, clamps, etc.
    Applications Multi-story steel structure buildings
    Remarks 1. Professional installation guidance is available to ensure proper assembly
    2. Other sizes or customized designs can be provided upon request
    Cross Section Properties
    Model Overall width of sheet (mm) Sheet thickness (mm) Profile weight (kg/m²) Moment of inertia (cm⁴/m) Positive bending moment (cm³/m)
    YX65-185-555 1000 0.8 92.47 45.35 20.72
    1.0 123.39 59.72 27.83
    1.2 154.30 74.09 34.90
    Features
    • The closed profile design forms a strong bond with concrete, preventing slippage and ensuring long-term structural reliability.
    • High bending and shear resistance ensure a good load-bearing capacity, even in demanding projects.
    • Fire resistance is enhanced since the ribs are fully encased in concrete.
    • Multi-level operations during construction are possible, which helps shorten project timelines.

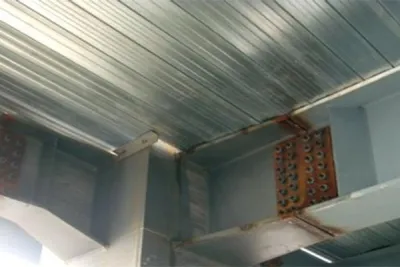

    • The flat underside has a clean finish, which makes additional ceiling work not necessary.
    • Compatible suspension systems allow easy installation and adjustment of pipes, conduits, and other building services.
    Get in Touch

    Tell us about your construction project today!

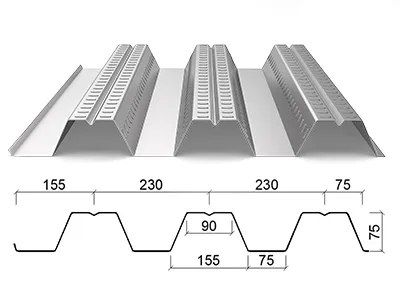

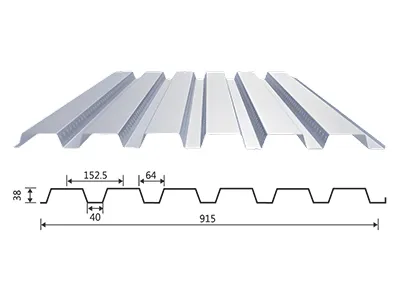

    Related Metal Floor Decks Learn more
    Metal Building Panels
    Discover All Products

    Dovetail re-entrant metal floor decks are a good option. They are lightweight yet strong, with high load-bearing and seismic performance. The flat underside provides a smooth surface, making it easier to attach suspended ceilings, electrical conduits, and other systems during construction.

    Closed profile metal floor decks are often used in these cases. Their fully enclosed profile design locks tightly with concrete, reducing the risk of steel and concrete separating under stress. This structure not only enhances overall strength but also offers improved fire resistance, making it a safer choice for large public buildings.

    Since the steel deck acts as permanent formwork, there’s no need for additional support structures. This simplifies installation, speeds up the concrete pour, and reduces labor on site. As a result, projects can be completed faster and with lower overall costs compared to traditional flooring methods.
