    YX30-195-980

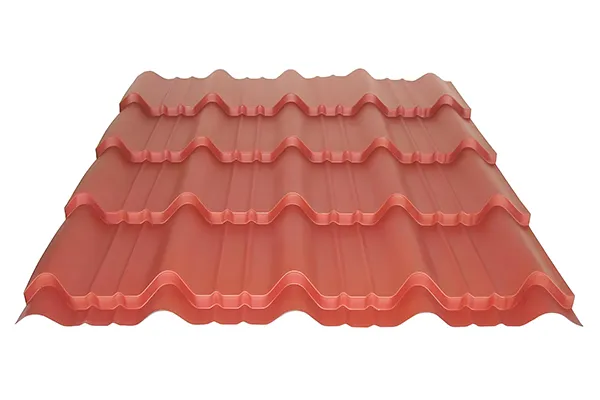

    Metal Roofing Tiles

    Tile effect roofing sheets with PVDF or PE coating

    • Effective cover width: 980mm
    • Overall width of sheet: 1200mm
    • Thickness: 0.4mm-1.0mm
    • Length: 1m-12m (customizable)
    • Material: Galvanized steel sheet, galvalume steel sheet, titanium zinc sheet, Al-Mg-Mn alloy sheet
    Request a Quote
    Metal Roofing Tiles
    • Metal Roofing Tiles
    • Metal Roofing Tiles

    These tile effect roofing sheets are made from aluminum-magnesium-manganese alloy and finished with a PVDF coating that protects the surface from fading, keeping the roof looking new even after decades of use. They are available in both standard and custom lengths, making it easier to fit different roof sizes while keeping a clean and uniform look.

    Applications

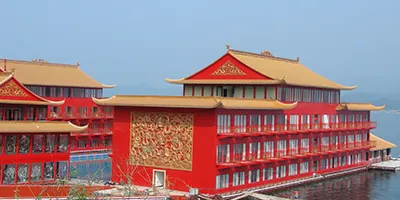

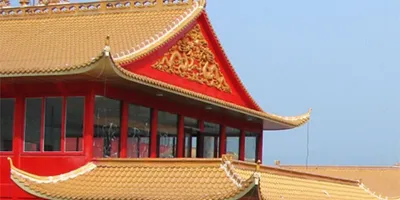

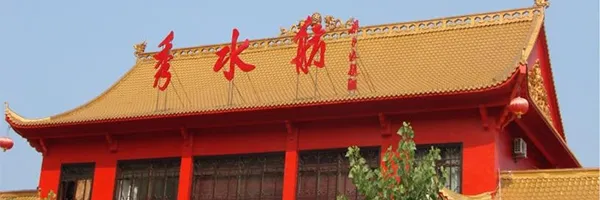

    Suitable for residential houses, apartments, villas, hotels, resorts, real estate projects, urban renovation, scenic buildings, and wooden roof structures.

    Certifications & Compliance

    Our operations are certified to ISO 9001, ISO 14001 and ISO 45001. For international projects, we can also arrange project-specific third-party testing and support market-specific product approvals across North America, the European Union, Southeast Asia, Australia and New Zealand. Available compliance documentation includes ASTM test reports, CE marking, CIDB certification, and other approvals that can be provided according to specific project requirements.

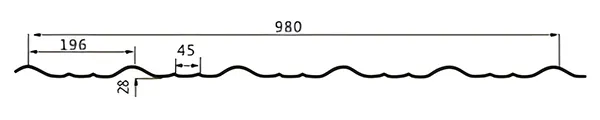

    Specifications
    Model YX30-195-980
    Effective cover width 980mm
    Overall width of sheet 1200mm
    Thickness 0.4mm-1.0mm
    Length 1m-12m (customizable)
    Material Galvanized steel sheet,galvalume steel sheet,titanium zinc sheet,Al-Mg-Mn alloy sheet
    Metal sheet suppliers Baosteel,BlueScope,Yieh Phui,Wah Tung,Alliance Steel,etc.
    Color Standard color + custom color
    Surface coating PE/PVDF,etc.
    Accessories included A complete range of drip edge,stop end hip,ridge end cap,round ridge cap,etc.
    Remarks 1. Professional installation guidance is available to ensure proper assembly
    2. Other sizes or customized designs can be provided upon request
    Features
    • These roofing tiles use aluminum-magnesium-manganese alloy with a PVDF coating, which protects the surface from fading and keeps the roof looking new for decades.
    • Their lightweight design makes them easy to install while providing waterproof properties and weather resistance, with a service life of more than 50 years.
    • The roll-formed, one-piece structure strengthens the roof itself, improving overall stability and seismic performance.
    • With their elegant tile-effect design, they offer an attractive alternative to traditional clay tiles while maintaining durability and low maintenance.
    Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors

    Need more colors? Feel free to get in touch!

    Get in Touch

    Tell us about your construction project today!

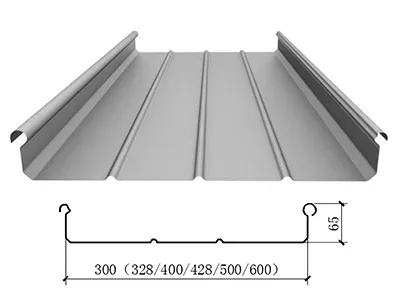

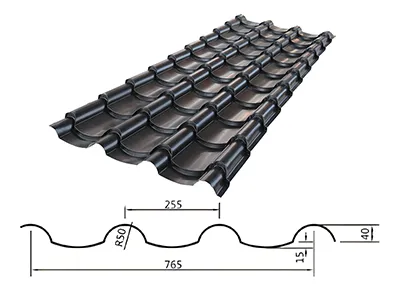

    Related Metal Roof Panels
    Metal Building Panels
    Discover All Products

    For areas with strong winds, heavy rain, snow, or hail, we recommend metal roofing sheets made from aluminum-magnesium-manganese alloy. With a PVDF coating and roll-formed structure, they offer high durability and help improve the overall seismic performance of the roof.

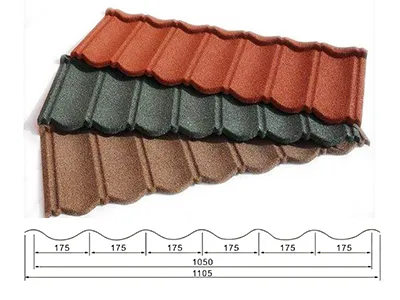

    Stone-coated metal roofing tiles are a great choice for projects that prioritize aesthetics and sustainability. They have a service life of over 50 years, are fully recyclable, and feature a ceramic-coated surface that looks natural and elegant while performing well in different climates.

    Yes, several of our metal roofing sheets are suitable for curved or S-shaped roofs. With concealed seam joints and a screw-free finish, they ensure a seamless look and preserve the architectural design.

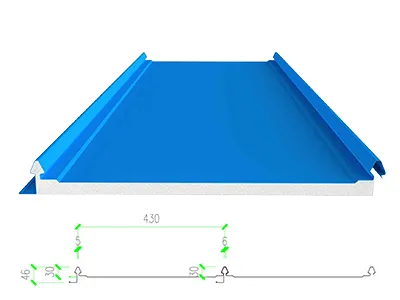

    We offer insulated composite roofing panels that are designed with prefabricated solar interfaces. They allow PV modules to be mounted directly without additional rails or connectors, reducing both material and installation costs while also providing insulation benefits.
