    YX24-70.67-425

    Metal Great Wall Panels

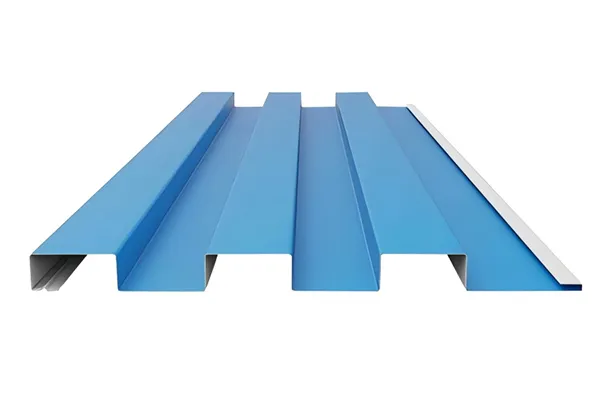

    24mm depth×425mm width batten profile cladding sheets for facades or exterior walls of various types of buildings

    • Effective cover width: 425mm
    • Overall width of sheet: 600mm
    • Thickness: 0.4mm-1.0mm
    • Length: Customizable
    • Material: Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet
    Request a Quote
    • Metal Great Wall Panels
    • Metal Great Wall Panels

    Batten profile cladding sheets combine strength with a lightweight build, which allows easier transport and installation without compromising reliability. The concealed fastening keeps the surface free of visible screws, giving the façade a clean and continuous look. The box-shaped ribs give the façade a defined, modern look and improve drainage when placed vertically. Made from corrosion-resistant alloy, the panels hold up well against weather and need very little maintenance, while the finish options allow architects to adapt them to different styles.

    Applications

    Suitable for industrial facilities, commercial buildings, hotels, offices, and exhibition halls; especially, for projects that require durability and a refined architectural style.

    Certifications & Compliance

    Our operations are certified to ISO 9001, ISO 14001 and ISO 45001. For international projects, we can also arrange project-specific third-party testing and support market-specific product approvals across North America, the European Union, Southeast Asia, Australia and New Zealand. Available compliance documentation includes ASTM test reports, CE marking, CIDB certification, and other approvals that can be provided according to specific project requirements.
    Specifications

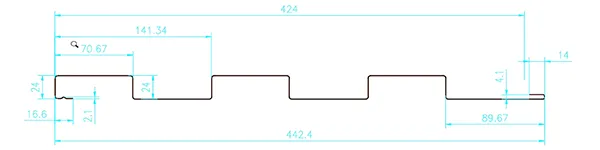

    Model YX24-70.67-425
    Effective cover width 425mm
    Overall width of sheet 600mm
    Thickness 0.4mm-1.0mm
    Length Customizable
    Type of cladding Concealed fastener wall panel
    Installation Horizontal installation, vertical installation
    Material Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet
    Metal sheet suppliers Baosteel, BlueScope, Yieh Phui, Wah Tung, Alliance Steel, etc.
    Color Standard color + custom color
    Surface coating PE/HDP/PVDF, etc.
    Lifespan At least 50 years
    Applications Architectural cladding for walls and roofs
    Mounting accessories included A full range of shear studs, self-tapping screws, clamps, etc.
    Remarks 1. Professional installation guidance is available to ensure proper assembly
    2. Other sizes or customized designs can be provided upon request
    Features
    • The concealed fastening system keeps screws out of sight, giving façades a clean and continuous appearance.
    • A box-rib profile adds depth and definition to the surface, enhancing the overall architectural design.
    • When installed vertically, the ribbed structure channels water efficiently and improves weather protection.
    • Panels are produced with corrosion-resistant alloy materials that provide durability, fire resistance, and long service life.
    • The batten cladding sheets are lightweight, they’re easier to move and install, and with different finishes and colors available, architects can adapt them to a wide variety of design needs.
    Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors

    Need more colors? Feel free to get in touch!

    Get in Touch

    Tell us about your construction project today!

    Related Metal Wall Panels Learn more
    Metal Building Panels
    Discover All Products

    Metal façade cladding is valued because it combines design with protection. While it gives buildings a modern and uniform look, it also shields exterior walls from rain, wind, and corrosion. Since it is lighter than many traditional materials yet strong and durable, it helps improve the lifespan of the structure while reducing future maintenance.

    We offer a wide range of metal wall cladding, covering different architectural and functional needs. Trapezoidal and corrugated profiles are preferred for their strength and easy installation, liner and AG panels create a smoother appearance, while batten profiles highlight vertical lines and add a distinctive design element. Each type of the facade cladding options we offer provides both structural reliability and visual impact.

    Façade cladding can improve both thermal and acoustic performance, especially when panels include insulating cores or protective coatings. Since they help regulate indoor temperature and reduce outside noise, they create more comfortable spaces for schools, hospitals, offices, and other commercial or public buildings, while also supporting energy efficiency.

    Façade cladding is suitable for both new constructions and renovations. In older buildings, façade cladding not only refreshes the appearance but also improves insulation and weather resistance, giving the structure better performance without the need for extensive rebuilding. These features make metal wall cladding a practical and cost-effective solution to extend the life of the façade.

    With proper installation and quality coatings, metal cladding can remain in good condition for decades. Thanks to their resistance to fading, corrosion, and harsh weather, maintaining this type of metal cladding is simple, even in coastal or high-rainfall areas.
