Metal Wall Panels
Metal Wall Panels

YX30-160-800

Metal Wall Panels

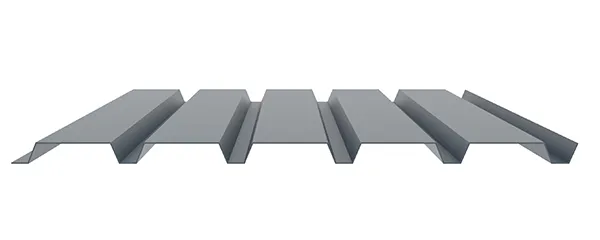

30mm depth×800mm width trapezoidal cladding sheets for facades or exterior walls of various types of buildings

  • Effective cover width: 800mm
  • Overall width of sheet: 1000mm
  • Thickness: 0.4mm-1.0mm
  • Length: Customizable
  • Material: Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet
Request a Quote
  • Metal Wall Panels
  • Metal Wall Panels
  • Metal Wall Panels
  • Metal Wall Panels

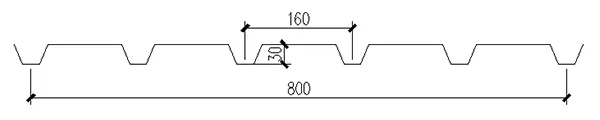

These exposed-fastener trapezoidal wall cladding sheets are designed with a 30 mm rib depth and an effective width of 800 mm, with sheet thickness options from 0.4 mm to 1.0 mm. They can be installed either vertically or horizontally, which is suitable for a wide range of roof and wall applications, including projects with complex shapes.

Applications

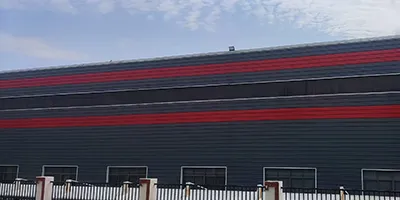

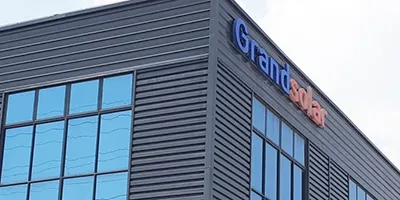

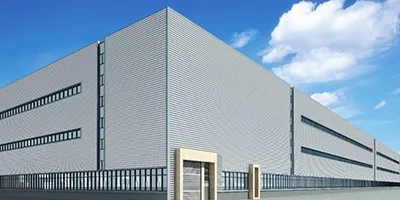

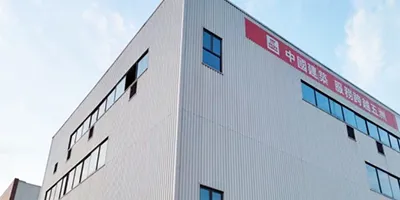

Widely used in industrial plants, commercial buildings, office complexes, hotels, shopping centers, and exhibition halls.

Certifications & Compliance

Our operations are certified to ISO 9001, ISO 14001 and ISO 45001. For international projects, we can also arrange project-specific third-party testing and support market-specific product approvals across North America, the European Union, Southeast Asia, Australia and New Zealand. Available compliance documentation includes ASTM test reports, CE marking, CIDB certification, and other approvals that can be provided according to specific project requirements.
Specifications
Model YX30-160-800
Effective cover width 800mm
Overall width of sheet 1000mm
Length Customizable
Thickness 0.4mm-1.0mm
Type of cladding Exposed fastener wall panel
Installation Horizontal installation, vertical installation
Material Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet
Metal sheet suppliers Baosteel, BlueScope, Yieh Phui, Wah Tung, Alliance Steel, etc.
Color Standard color + custom color
Surface coating PE/HDP/PVDF, etc.
Lifespan At least 50 years
Mounting accessories included A full range of shear studs, self-tapping screws, clamps, etc.
Remarks 1. Professional installation guidance is available to ensure proper assembly
2. Other sizes or customized designs can be provided upon request
Features
  • The trapezoidal rib design creates a strong sense of depth, giving façades a defined, modern look.
  • The high material utilization rate helps keep costs under control while still delivering a clean and attractive finish.
  • Since the panels are lightweight, installation is easier and faster, while transport and long-term maintenance costs remain low.
  • Made from aluminum-magnesium-manganese alloy with a PVDF coating, the sheets maintain strong self-cleaning properties, durability, and reliable resistance to harsh weather conditions.
Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors

Need more colors? Feel free to get in touch!

Get in Touch

Tell us about your construction project today!

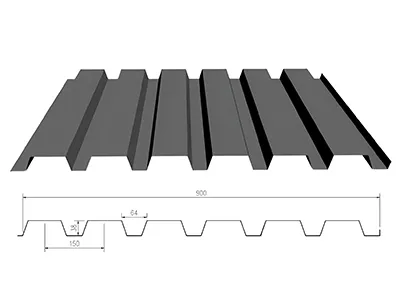

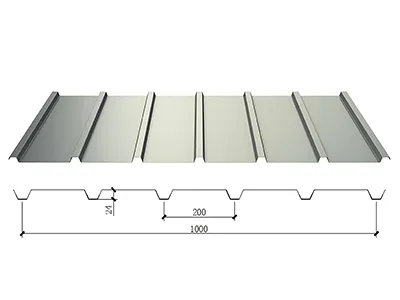

Related Metal Wall Panels Learn more
Metal Building Panels
Discover All Products

Metal façade cladding is valued because it combines design with protection. While it gives buildings a modern and uniform look, it also shields exterior walls from rain, wind, and corrosion. Since it is lighter than many traditional materials yet strong and durable, it helps improve the lifespan of the structure while reducing future maintenance.

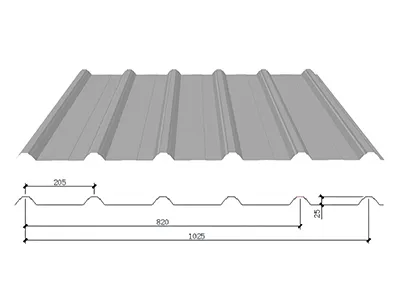

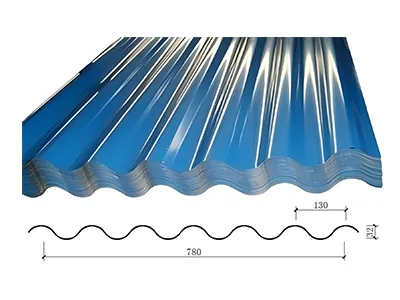

We offer a wide range of metal wall cladding, covering different architectural and functional needs. Trapezoidal and corrugated profiles are preferred for their strength and easy installation, liner and AG panels create a smoother appearance, while batten profiles highlight vertical lines and add a distinctive design element. Each type of the facade cladding options we offer provides both structural reliability and visual impact.

Façade cladding can improve both thermal and acoustic performance, especially when panels include insulating cores or protective coatings. Since they help regulate indoor temperature and reduce outside noise, they create more comfortable spaces for schools, hospitals, offices, and other commercial or public buildings, while also supporting energy efficiency.

Façade cladding is suitable for both new constructions and renovations. In older buildings, façade cladding not only refreshes the appearance but also improves insulation and weather resistance, giving the structure better performance without the need for extensive rebuilding. These features make metal wall cladding a practical and cost-effective solution to extend the life of the façade.

With proper installation and quality coatings, metal cladding can remain in good condition for decades. Thanks to their resistance to fading, corrosion, and harsh weather, maintaining this type of metal cladding is simple, even in coastal or high-rainfall areas.
