Color-Coated Steel Wall Panels
Color-Coated Steel Wall Panels

YX25-205-1025

Color-Coated Steel Wall Panels

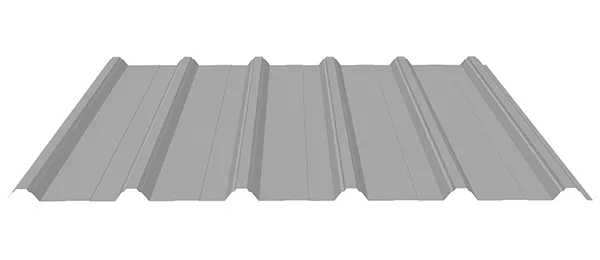

25mm depth×1025mm width G-Rib wall panel suitable for both roofing and siding applications

  • Effective cover width: 1025mm
  • Overall width of sheet: 1250mm
  • Thickness: 0.4mm-1.0mm
  • Length: Customizable
  • Material: Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet
Request a Quote
  • Color-Coated Steel Wall Panels
  • Color-Coated Steel Wall Panels

Color-coated steel wall panels use a G-Rib profile that works for both roofing and siding applications. With a rib depth of 25 mm and a cover width of 1025 mm, they combine strength, weather resistance, and a clean finish. The consistent rib design improves stability while maintaining a uniform look, making them suitable for agricultural, residential, and commercial buildings.

Applications

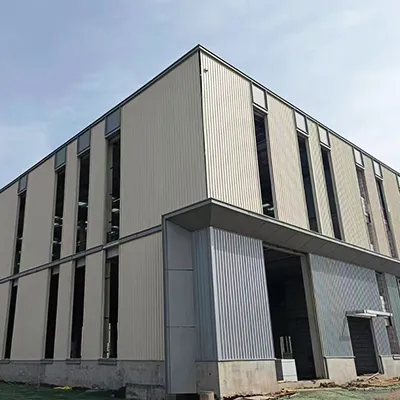

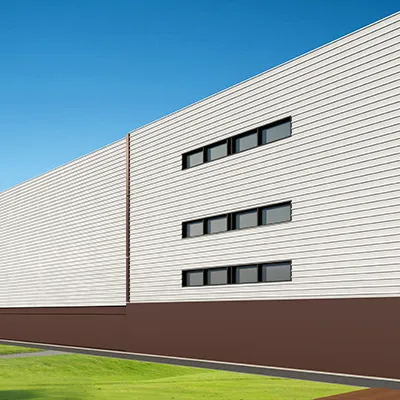

Color-coated steel wall panels are suitable for industrial buildings, warehouses, agricultural facilities, commercial complexes, and even residential projects where a durable and economical wall or roof covering is required.

Certifications & Compliance

Our operations are certified to ISO 9001, ISO 14001 and ISO 45001. For international projects, we can also arrange project-specific third-party testing and support market-specific product approvals across North America, the European Union, Southeast Asia, Australia and New Zealand. Available compliance documentation includes ASTM test reports, CE marking, CIDB certification, and other approvals that can be provided according to specific project requirements.
Specifications
Model YX25-205-1025
Effective cover width 1025mm
Overall width of sheet 1250mm
Thickness 0.4mm-1.0mm
Length Customizable
Type of cladding Exposed fastener wall panel
Installation Horizontal installation, vertical installation
Material Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet
Metal sheet suppliers Baosteel, BlueScope, Yieh Phui, Wah Tung, Alliance Steel, etc.
Color Standard color + custom color
Surface coating PE/HDP/PVDF, etc.
Lifespan At least 50 years
Applications Architectural cladding for walls and roofs
Mounting accessories included A full range of shear studs, self-tapping screws, clamps, etc.
Remarks 1. Professional installation guidance is available to ensure proper assembly
2. Other sizes or customized designs can be provided upon request

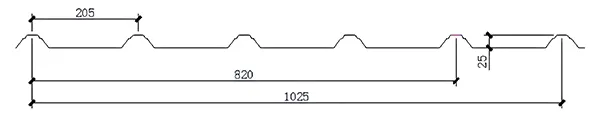

Cross Section Properties
Effective cover width (mm) 1025
Overall width of sheet (mm) 1250
Thickness (mm) 0.4 0.5 0.6
Moment of inertia (cm⁴/m) 15.20 18.75 22.80
Moment of resistance (cm³/m) 8.15 10.20 12.45
Features
  • The G-Rib profile ensures reliable performance while maintaining a clean and balanced architectural look.
  • Panels can be used on both walls and roofs, so they are adaptable for multiple applications.
  • Manufactured from high-quality coated steel, they provide resistance to corrosion, UV rays, and harsh weather conditions.
  • Lightweight design simplifies handling and installation, reducing time and labor costs.
  • The uniform rib spacing enhances drainage and prevents water accumulation on roofs.
Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors

Need more colors? Feel free to get in touch!

Get in Touch

Tell us about your construction project today!

Related Metal Wall Panels Learn more
Metal Building Panels
Discover All Products

Metal façade cladding is valued because it combines design with protection. While it gives buildings a modern and uniform look, it also shields exterior walls from rain, wind, and corrosion. Since it is lighter than many traditional materials yet strong and durable, it helps improve the lifespan of the structure while reducing future maintenance.

We offer a wide range of metal wall cladding, covering different architectural and functional needs. Trapezoidal and corrugated profiles are preferred for their strength and easy installation, liner and AG panels create a smoother appearance, while batten profiles highlight vertical lines and add a distinctive design element. Each type of the facade cladding options we offer provides both structural reliability and visual impact.

Façade cladding can improve both thermal and acoustic performance, especially when panels include insulating cores or protective coatings. Since they help regulate indoor temperature and reduce outside noise, they create more comfortable spaces for schools, hospitals, offices, and other commercial or public buildings, while also supporting energy efficiency.

Façade cladding is suitable for both new constructions and renovations. In older buildings, façade cladding not only refreshes the appearance but also improves insulation and weather resistance, giving the structure better performance without the need for extensive rebuilding. These features make metal wall cladding a practical and cost-effective solution to extend the life of the façade.

With proper installation and quality coatings, metal cladding can remain in good condition for decades. Thanks to their resistance to fading, corrosion, and harsh weather, maintaining this type of metal cladding is simple, even in coastal or high-rainfall areas.
