Metal Liner Panels
Metal Liner Panels

YX24-200-1000

Metal Liner Panels

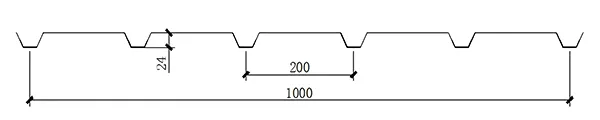

24mm depth×1000mm width internal liner panel for inner refurbishment of buildings

  • Effective cover width: 1000mm
  • Overall width of sheet: 1200mm
  • Thickness: 0.4mm-1.0mm
  • Length: Customizable
  • Material: Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet
Request a Quote
  • Metal Liner Panels
  • Metal Liner Panels

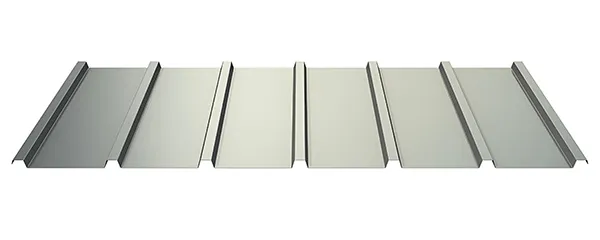

Metal liner panels are designed with a flat surface and shallow grooves set at regular intervals, giving walls and ceilings a clean, uniform look. With a rib depth of 24 mm and a cover width of 1000 mm, they are suitable for interior linings, partitions, and ceilings. The panels integrate well with roof and wall systems, helping projects maintain a consistent appearance while keeping installation straightforward and cost-effective.

Applications

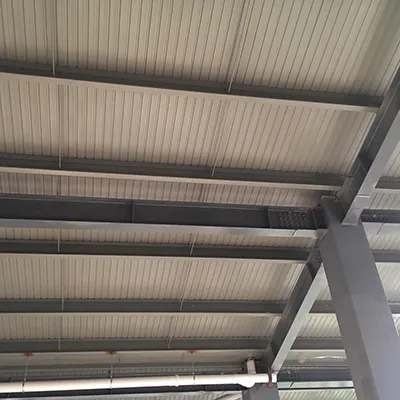

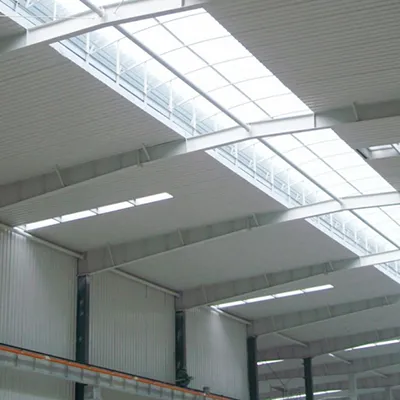

Metal liner panels are suitable for industrial workshops, commercial spaces, offices, hotels, malls, and exhibition centers. They can also be used for ceilings and partitions to create durable, uniform surfaces.

Certifications & Compliance

Our operations are certified to ISO 9001, ISO 14001 and ISO 45001. For international projects, we can also arrange project-specific third-party testing and support market-specific product approvals across North America, the European Union, Southeast Asia, Australia and New Zealand. Available compliance documentation includes ASTM test reports, CE marking, CIDB certification, and other approvals that can be provided according to specific project requirements.
Specifications
Model YX24-200-1000
Effective cover width 1000mm
Overall width of sheet 1200mm
Thickness 0.4mm-1.0mm
Length Customizable
Type of cladding Exposed fastener wall panel
Installation Horizontal installation, vertical installation
Material Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet
Metal sheet suppliers Baosteel, BlueScope, Yieh Phui, Wah Tung, Alliance Steel, etc.
Color Standard color + custom color
Surface coating PE/HDP/PVDF, etc.
Lifespan At least 50 years
Mounting accessories included A full range of shear studs, self-tapping screws, clamps, etc.
Remarks 1. Professional installation guidance is available to ensure proper assembly
2. Other sizes or customized designs can be provided upon request
Features
  • The panels are designed with evenly spaced shallow grooves, giving interiors a clean, uniform, and attractive finish.
  • Their structure makes them suitable for use as wall linings, ceilings, and partition boards, combining practicality with aesthetics.
  • Lightweight yet durable materials make handling and installation easier, while also keeping overall costs efficient.
