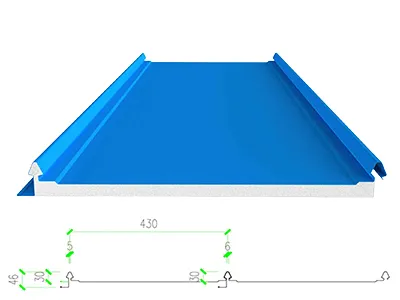

1. Sandwich Roof Panels (Good Cladding@)
    2. Sandwich Roof Panels (Good Cladding@) These newly developed insulated metal roof panels are designed for photovoltaic projects, providing both structural support and reliable insulation. They combine thermal protection, noise reduction, and a clean decorative finish in a single solution.
      Effective width: 430mm
      Length: 1m-12m (customizable)
      Sandwich panel thickness: 20mm
      Metal sheet thickness: 0.4mm-0.7mm
      Details

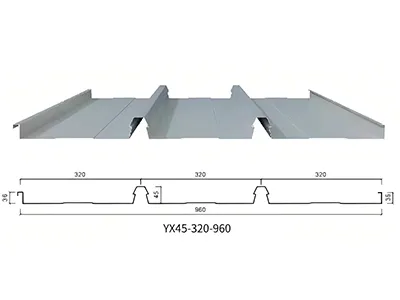

    1. Concealed Fix Roofing Sheets
    2. Concealed Fix Roofing Sheets Patented concealed-fix roofing sheets are designed for photovoltaic projects, offering durability and efficient solar integration. Each panel connects through a 360° interlocking seam within the concealed-fix system, providing strong resistance to wind and water.
      Effective width: 960mm/760mm
      Overall width of sheet: 1200mm/1000mm
      Length: 1m-12m (customizable)
      Thickness: 0.4mm-1.0mm
      Details

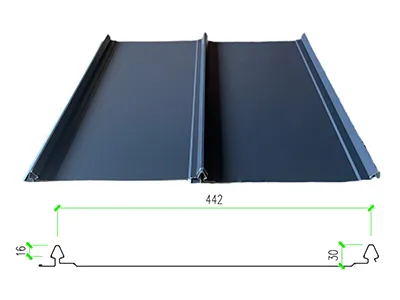

    1. Solar-Ready Metal Roofing Panel
    2. Solar-Ready Metal Roofing Panel We developed a patented roofing sheet designed for photovoltaic applications that uses a concealed clip system to create a tight interlocking connection. This structure provides resistance to wind and water while keeping the roof surface intact.
      Effective cover width: 442mm
      Overall width of sheet: 600mm
      Length: 1m-12m (customizable)
      Thickness: 0.45mm, 0.5 mm, 0.6mm, 0.7mm
      Details
Planning a large-scale steel construction project?

We are your trusted partner for metal building panels and steel structure buildings, and our team of experts is ready to support your next project.

Contact Us

In building-integrated photovoltaics (BIPV), the metal sheets are usually made from galvalume steel or aluminum-magnesium-manganese alloy. Both are lightweight, resistant to corrosion, and designed for long service life. For example, aluminum-magnesium alloys can last up to 50 years in normal conditions, which makes them very reliable for roofing applications.

Yes. Solar roof panels are flexible enough to be used on flat or sloped roofs. The actual tilt angle depends on the local climate and the hours of effective sunlight. In regions with lower solar exposure, adjusting the angle helps improve energy efficiency.

FAQs

Compared to single-layer roofing sheets, insulated solar roof panels have a layered design. When rigid polyurethane foam is used as the core, it improves thermal and acoustic performance. This reduces common issues such as rain noise, wind impact, and outside mechanical sounds, so they are suitable even for hospitals, schools, or residential projects where a quieter environment is important.

FAQs

For areas exposed to high winds and typhoons, standing seam metal roofs with a 360° seam clamps are recommended because the panels interlock securely and resist uplift.

FAQs

Concealed fixed roofing sheets are also an option; they offer strong wind resistance without visible fasteners, which also improves durability and appearance.
