Model Explanation (take YX35-125-750 as an example)
| YX | Roll formed steel sheet |
| 35 | Rib depth: 35mm |
| 125 | Rib spacing (pitch): 125mm (center to center) |
| 750 | Effective cover width: 750mm |
-

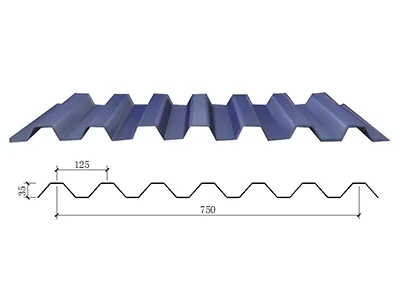

- Metal Wall Panels (Trapezoidal Profile 35mm Depth×750mm Width) Facade cladding sheets with a trapezoidal rib profile create a uniform surface and give buildings a clean, appealing look. With a 1000 mm width and thickness options from 0.4 mm to 1.0 mm, they can be customized for different projects.
- Effective cover width: 750mm
- Overall width of sheet: 1000mm
- Thickness: 0.4mm-1.0mm
- Length: Customizable
-

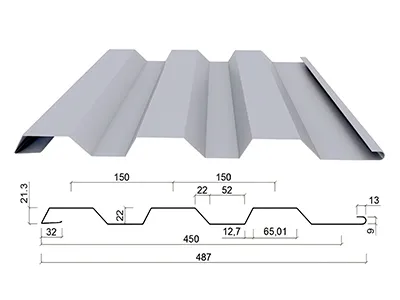

- Concealed Fastener Metal Wall Panels (Trapezoidal Profile 22mm Depth×450mm Width) These cladding panels are designed with a hidden fastening system, which means the fixings are concealed behind the surface rather than exposed. This keeps the exterior appearance clean and uninterrupted while also protecting the panels from early wear caused by drilled holes or exposed screws.
- Effective cover width: 450mm
- Overall width of sheet: 600mm
- Thickness: 0.4mm-1.0mm
- Length: Customizable
-

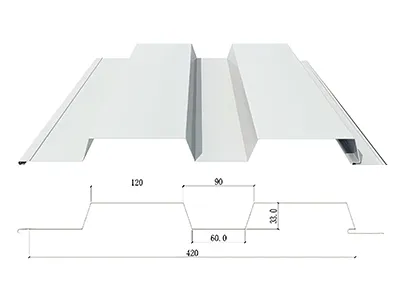

- Concealed Fastener Metal Wall Panels (Trapezoidal Profile 33mm Depth×420mm Width) Concealed fastener wall cladding sheets combine a trapezoidal profile design with a hidden fastening system that leaves the surface free of visible screws. It can be installed either horizontally or vertically, delivering a clean, modern look while also supporting long service life of over 50 years.
- Effective cover width: 420mm
- Overall width of sheet: 500mm
- Thickness: 0.4mm-1.0mm
- Length: Customizable
-

- Metal Wall Panels (Trapezoidal Profile 30mm Depth×800mm Width) These exposed-fastener trapezoidal wall cladding sheets are designed with a 30 mm rib depth and an effective width of 800 mm, with sheet thickness options from 0.4 mm to 1.0 mm.
- Effective cover width: 800mm
- Overall width of sheet: 1000mm
- Thickness: 0.4mm-1.0mm
- Length: Customizable
-

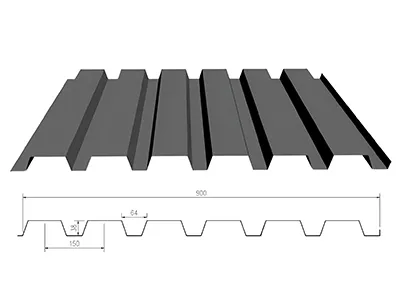

- Al-Mg-Mn Alloy Wall Panels (Trapezoidal Profile 38mm Depth×900mm Width) Trapezoidal cladding panels combine a modern look with added structural strength, making them suitable for a wide range of exterior wall designs. They can be installed either horizontally or vertically, giving architects and builders more flexibility when creating customized façades.
- Effective cover width: 900mm
- Overall width of sheet: 1250mm
- Thickness: 0.4mm-1.0mm
- Length: Customizable
-

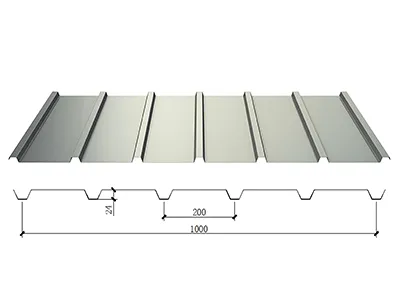

- Metal Liner Panels (Profile 24mm Depth×1000mm Width) Metal liner panels are designed with a flat surface and shallow grooves set at regular intervals, giving walls and ceilings a clean, uniform look. With a rib depth of 24 mm and a cover width of 1000 mm, they are suitable for interior linings, partitions, and ceilings.
- Effective cover width: 1000mm
- Overall width of sheet: 1200mm
- Thickness: 0.4mm-1.0mm
- Length: Customizable
-

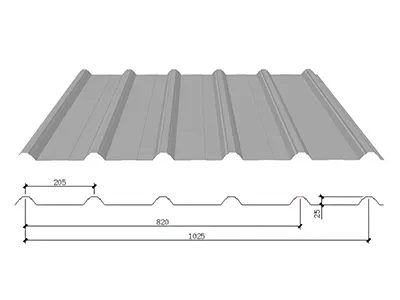

- Color-Coated Steel Wall Panels (Profile 25mm Depth×1025mm Width) Color-coated steel wall panels use a G-Rib profile that works for both roofing and siding applications. With a rib depth of 25 mm and a cover width of 1025 mm, they combine strength, weather resistance, and a clean finish.
- Effective cover width: 1025mm
- Overall width of sheet: 1250mm
- Thickness: 0.4mm-1.0mm
- Length: Customizable
-

- Corrugated Profile Metal Wall Panel (Corrugated Profile 32mm Depth×780mm Width) These corrugated cladding sheets stand out for their wide wave profile, which gives façades a smooth and dynamic look. They can be installed in both horizontal and vertical layouts, giving more flexibility to adapt the façade to different designs.
- Effective cover width: 780mm
- Overall width of sheet: 1000mm
- Thickness: 0.4mm-1.0mm
- Length: Customizable
-

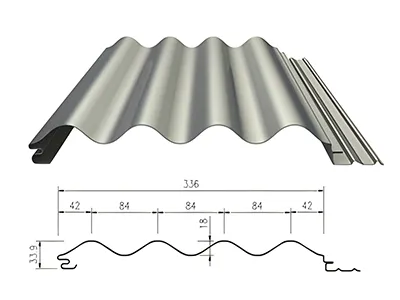

- Concealed Fastener Metal Wall Panels (Corrugated Profile 18mm Depth×336mm Width) Concealed fastener corrugated wall cladding sheets use a subtle wave-shaped profile that gives façades a modern, continuous finish. The fixing system keeps screws concealed, giving the surface a smooth and clean finish while protecting against water.
- Effective cover width: 336mm
- Overall width of sheet: 500mm
- Thickness: 0.4mm-1.0mm
- Length: Customizable
-

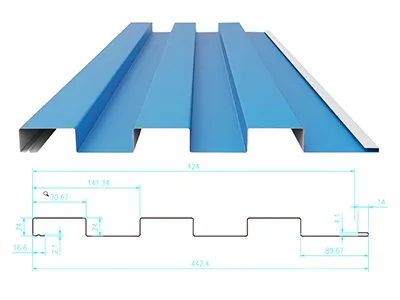

- Metal Great Wall Panels (Batten Profile 24mm Depth×425mm Width) Batten profile cladding sheets combine strength with a lightweight build, which allows easier transport and installation without compromising reliability. The concealed fastening keeps the surface free of visible screws, giving the façade a clean and continuous look.
- Effective cover width: 425mm
- Overall width of sheet: 600mm
- Thickness: 0.4mm-1.0mm
- Length: Customizable
