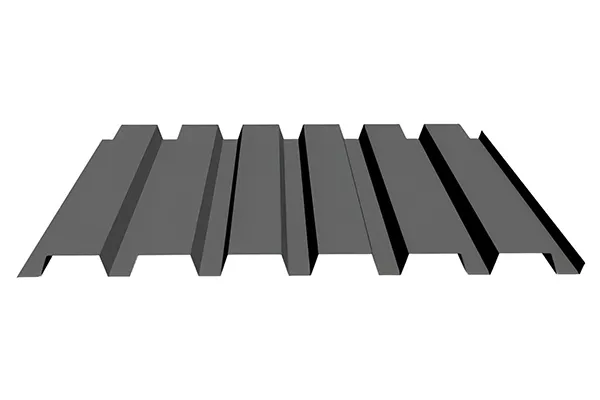

YX38-150-900
Al-Mg-Mn Alloy Wall Panels

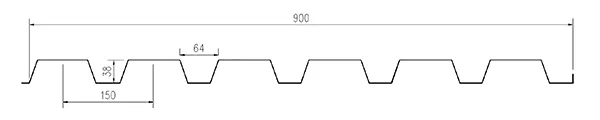

38mm depth×900mm width trapezoidal cladding sheets for facades or exterior walls of various types of buildings
- Effective cover width: 900mm
- Overall width of sheet: 1250mm
- Thickness: 0.4mm-1.0mm
- Length: Customizable
- Material: Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet
Trapezoidal cladding panels combine a modern look with added structural strength, making them suitable for a wide range of exterior wall designs. They can be installed either horizontally or vertically, giving architects and builders more flexibility when creating customized façades.
Applications

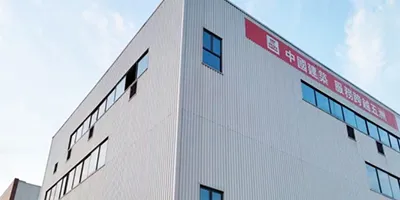

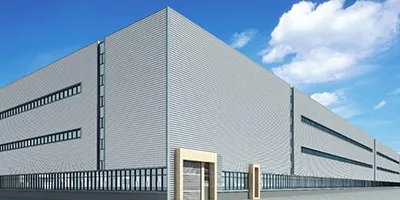

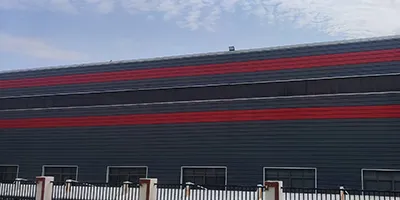

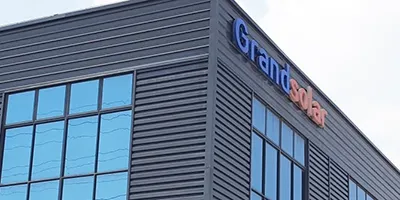

Widely used in industrial plants, commercial complexes, office buildings, hotels, shopping centers, and exhibition halls. Their durable profile and modern lines make them an effective choice for projects that require both strength and aesthetic appeal.
Highlights & Applications
- The 38 mm deep, 900 mm wide trapezoidal profile is designed for façades of exhibition halls, commercial buildings, and industrial workshops.
- Panels are fixed to a galvanized steel framework (≥1.5 mm thick) with spacing up to 1200 mm, and can also be applied over concrete or steel structures.
- Installation is usually vertical to highlight the height of the building, but panels can also be placed horizontally when the design requires.
- Fastening is done with exposed screws, with joints secured from bottom to top and left to right, ensuring stability and straightforward installation.
- Two profile options are available, both emphasizing bold, geometric lines that give façades a strong and modern appearance.

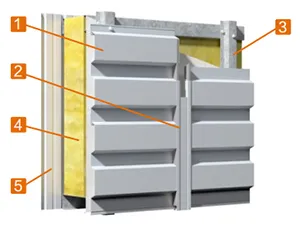

Components
- Façade cladding
- Joint cover strip
- Vertical subframe (stud/keel)
- Thermal insulation layer
- Liner panel
