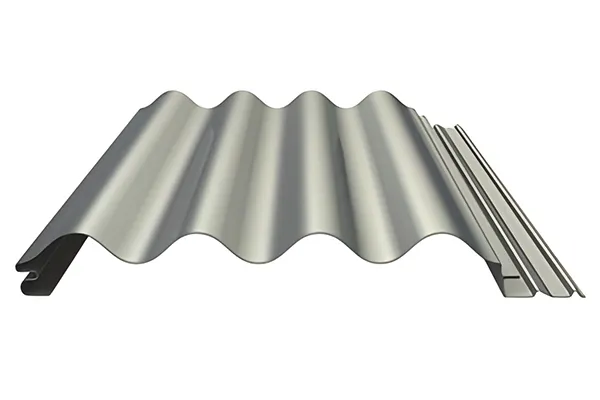

    YX18-84-336

    Concealed Fastener Metal Wall Panels

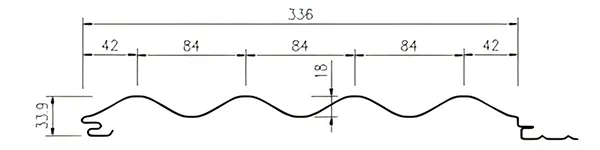

    18mm depth×336mm width corrugated profile cladding sheets for facades or exterior walls of various types of buildings

    • Effective cover width: 336mm
    • Overall width of sheet: 500mm
    • Thickness: 0.4mm-1.0mm
    • Length: Customizable
    • Material: Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet
    Request a Quote
    • Concealed Fastener Metal Wall Panels
    • Concealed Fastener Metal Wall Panels

    Concealed fastener corrugated wall cladding sheets use a subtle wave-shaped profile that gives façades a modern, continuous finish. The fixing system keeps screws concealed, giving the surface a smooth and clean finish while protecting against water. The façade cladding panels use an aluminum-magnesium-manganese alloy that gives them strength without adding extra weight. They are easy to install and perform well even in tough environments. Thanks to their durable structure and a clean finish, they work well for projects that demand both reliability and a polished appearance.

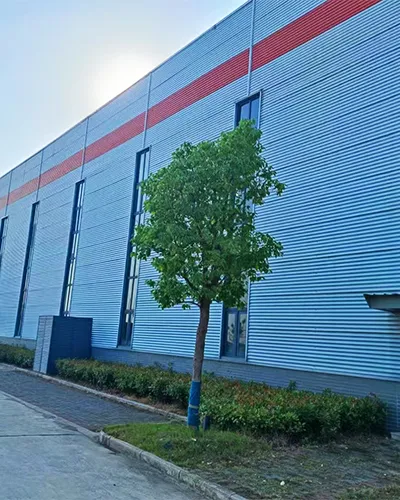

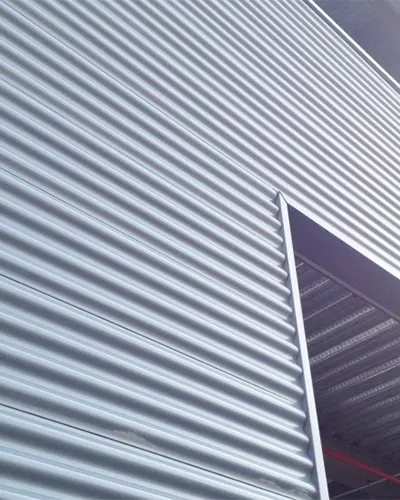

    Applications

    Commonly used in factories, office buildings, hotels, shopping centers, and exhibition halls. They are also suitable for other public and commercial projects that require reliable performance together with a clean and attractive exterior.

    Highlights & Applications
    • Used on façades of office buildings, commercial projects, and industrial workshops
    • Installed on galvanized steel framing (≥1.5 mm) with spacing up to 1200 mm
    • Can be fixed to either concrete walls or steel structures
    • Usually placed horizontally, panels are secured from bottom to top with a concealed fixing system
    • Provides a neat finish without exposed screws and gives the building a solid, clean look

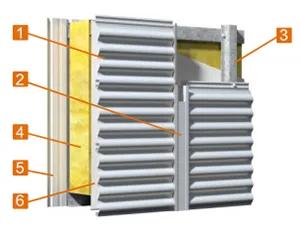

    Components
    Concealed Fastener Metal Wall Panels
    • Façade cladding
    • Joint cover strip
    • Vertical subframe (stud/keel)
    • Insulation layer
    • Liner panel
    • Air barrier
    Specifications
    Model YX18-84-336
    Effective cover width 336mm
    Overall width of sheet 500mm
    Thickness 0.4mm-1.0mm
    Length Customizable
    Type of cladding Concealed fastener wall panel
    Installation Horizontal installation, vertical installation
    Material Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet
    Metal sheet suppliers Baosteel, BlueScope, Yieh Phui, Wah Tung, Alliance Steel, etc.
    Color Standard color + custom color
    Surface coating PE/HDP/PVDF, etc.
    Lifespan At least 50 years
    Mounting accessories included A full range of shear studs, self-tapping screws, clamps, etc.
    Remarks 1. Professional installation guidance is available to ensure proper assembly
    2. Other sizes or customized designs can be provided upon request
    Features
    • A concealed screw system creates smooth façades without visible fixings, enhancing both appearance and waterproofing.
    • The corrugated design adds strength to the panels while also helping them perform well against fire, harsh weather, and even seismic activity.
    • These panels are made from strong alloy materials that resist wear and weather, so they can last for decades with very little maintenance required.
    • since the panels are lightweight, they’re easy to move and install, and they come in different colors to match a variety of building designs.
    Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors

    Need more colors? Feel free to get in touch!

    Get in Touch

    Tell us about your construction project today!

    Related Metal Wall Panels Learn more
    Metal Building Panels
    Discover All Products

    Metal façade cladding is valued because it combines design with protection. While it gives buildings a modern and uniform look, it also shields exterior walls from rain, wind, and corrosion. Since it is lighter than many traditional materials yet strong and durable, it helps improve the lifespan of the structure while reducing future maintenance.

    We offer a wide range of metal wall cladding, covering different architectural and functional needs. Trapezoidal and corrugated profiles are preferred for their strength and easy installation, liner and AG panels create a smoother appearance, while batten profiles highlight vertical lines and add a distinctive design element. Each type of the facade cladding options we offer provides both structural reliability and visual impact.

    Façade cladding can improve both thermal and acoustic performance, especially when panels include insulating cores or protective coatings. Since they help regulate indoor temperature and reduce outside noise, they create more comfortable spaces for schools, hospitals, offices, and other commercial or public buildings, while also supporting energy efficiency.

    Façade cladding is suitable for both new constructions and renovations. In older buildings, façade cladding not only refreshes the appearance but also improves insulation and weather resistance, giving the structure better performance without the need for extensive rebuilding. These features make metal wall cladding a practical and cost-effective solution to extend the life of the façade.

    With proper installation and quality coatings, metal cladding can remain in good condition for decades. Thanks to their resistance to fading, corrosion, and harsh weather, maintaining this type of metal cladding is simple, even in coastal or high-rainfall areas.
