    YX22-150-450

    Concealed Fastener Metal Wall Panels

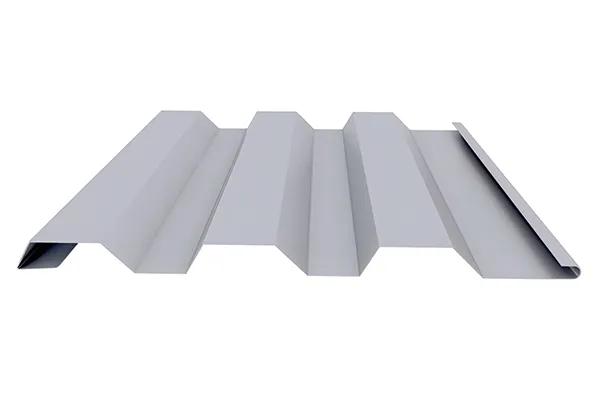

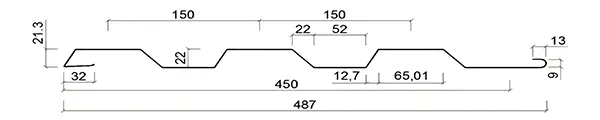

    22mm depth×450mm width trapezoidal cladding sheets for facades or exterior walls of various types of buildings

    • Effective cover width: 450mm
    • Overall width of sheet: 600mm
    • Thickness: 0.4mm-1.0mm
    • Length: Customizable
    • Material: Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet
    Request a Quote
    • Concealed Fastener Metal Wall Panels
    • Concealed Fastener Metal Wall Panels

    These cladding panels are designed with a hidden fastening system, which means the fixings are concealed behind the surface rather than exposed. This keeps the exterior appearance clean and uninterrupted while also protecting the panels from early wear caused by drilled holes or exposed screws. The symmetrical trapezoidal rib design not only strengthens the panel but also gives the façade a modern and balanced look. Thanks to the concealed joint method, the surface remains flat and uniform, making it especially suited for projects where aesthetics and long-term durability are equally important.

    Applications

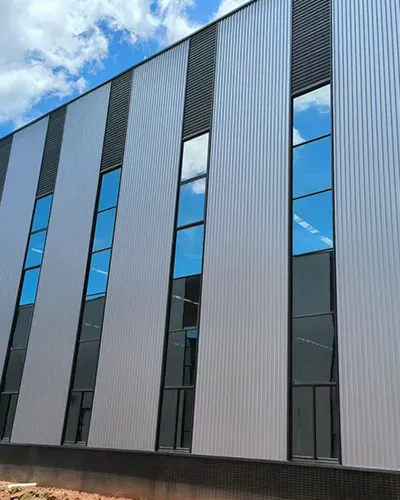

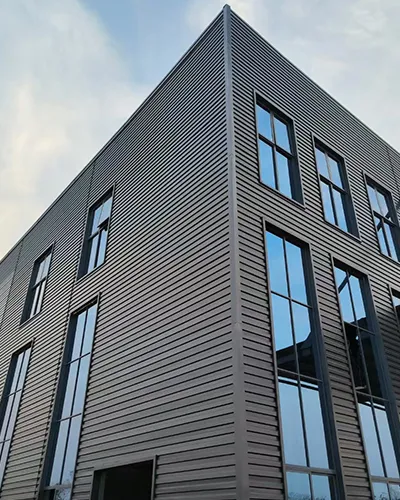

    Widely used in industrial plants, commercial complexes, office buildings, hotels, retail centers, and exhibition venues, offering both protection and a clean architectural finish.

    Highlights & Applications
    • Wall applications
      Used on flat façades or the exterior of industrial workshops, or places that require a clean and uniform finish
    • Supporting framework
      The panels are fixed to a subframe made from either galvanized steel (≥1.5 mm) or aluminum profiles (≥2 mm). To ensure stability, the fixing surface of each profile should be at least 50 mm wide, with spacing no more than 1200 mm.
    • Structural substrate
      The panels can be installed on different types of load-bearing structures, such as brick walls, concrete walls, or steel-framed workshops.
    • Installation method
      Horizontal panels are installed progressively from the bottom upwards. Vertical panels are placed from left to right, maintaining alignment and consistent spacing.

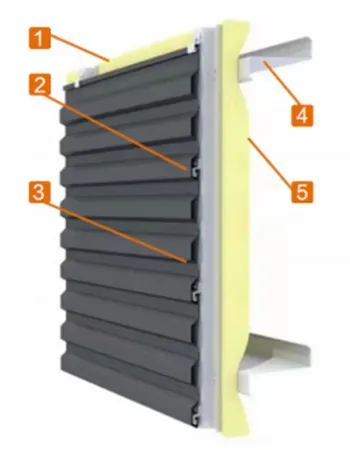

    Concealed Fastener Wall Cladding – Assembly Diagram
    Concealed Fastener Metal Wall Panels
    • Façade cladding
    • Panel fixing clamp
    • Vertical keel / stud
    • Insulation layer
    • Wall purlin
    Specifications
    Model YX22-150-450
    Effective cover width 450mm
    Overall width of sheet 600mm
    Thickness 0.4mm-1.0mm
    Length Customizable
    Type of cladding Concealed fastener wall panel
    Installation Horizontal installation, vertical installation
    Material Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet
    Metal sheet suppliers Baosteel, BlueScope, Yieh Phui, Wah Tung, Alliance Steel, etc.
    Color Standard color + custom color
    Surface coating PE/PVDF, etc.
    Lifespan At least 50 years
    Mounting accessories included A full range of shear studs, self-tapping screws, clamps, etc.
    Remarks 1. Professional installation guidance is available to ensure proper assembly
    2. Other sizes or customized designs can be provided upon request
    Features
    • Concealed fastening keeps the façade free of visible screws, protecting both appearance and service life
    • Balanced trapezoidal rib design enhances strength while maintaining a refined and uniform exterior
    • Horizontal installation ensures smooth alignment across large wall areas
    • Manufactured with coated aluminum-magnesium-manganese steel to ensure a reliable resistance to corrosion and harsh weather
    • Their low-maintenance finish with self-cleaning properties reduces maintenance costs over time
    • Lightweight and easy to install, which makes them practical for a wide range of building projects.
    Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors

    Need more colors? Feel free to get in touch!

    Get in Touch

    Tell us about your construction project today!

    Related Metal Wall Panels Learn more
    Metal Building Panels
    Discover All Products

    Metal façade cladding is valued because it combines design with protection. While it gives buildings a modern and uniform look, it also shields exterior walls from rain, wind, and corrosion. Since it is lighter than many traditional materials yet strong and durable, it helps improve the lifespan of the structure while reducing future maintenance.

    We offer a wide range of metal wall cladding, covering different architectural and functional needs. Trapezoidal and corrugated profiles are preferred for their strength and easy installation, liner and AG panels create a smoother appearance, while batten profiles highlight vertical lines and add a distinctive design element. Each type of the facade cladding options we offer provides both structural reliability and visual impact.

    Façade cladding can improve both thermal and acoustic performance, especially when panels include insulating cores or protective coatings. Since they help regulate indoor temperature and reduce outside noise, they create more comfortable spaces for schools, hospitals, offices, and other commercial or public buildings, while also supporting energy efficiency.

    Façade cladding is suitable for both new constructions and renovations. In older buildings, façade cladding not only refreshes the appearance but also improves insulation and weather resistance, giving the structure better performance without the need for extensive rebuilding. These features make metal wall cladding a practical and cost-effective solution to extend the life of the façade.

    With proper installation and quality coatings, metal cladding can remain in good condition for decades. Thanks to their resistance to fading, corrosion, and harsh weather, maintaining this type of metal cladding is simple, even in coastal or high-rainfall areas.
