    YX32-130-780

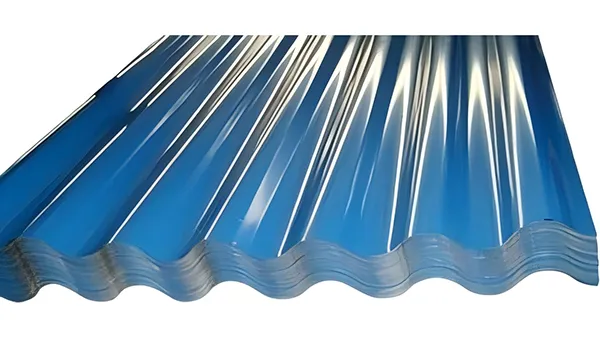

    Corrugated Profile Metal Wall Panel

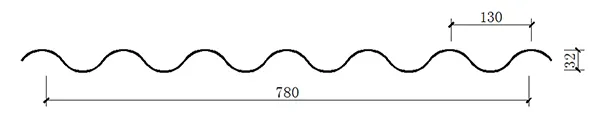

    32mm depth×780mm width corrugated profile cladding sheets for facades or exterior walls of various types of buildings

    • Effective cover width: 780mm
    • Overall width of sheet: 1000mm
    • Thickness: 0.4mm-1.0mm
    • Length: Customizable
    • Material: Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet
    Request a Quote
    • Corrugated Profile Metal Wall Panel
    • Corrugated Profile Metal Wall Panel

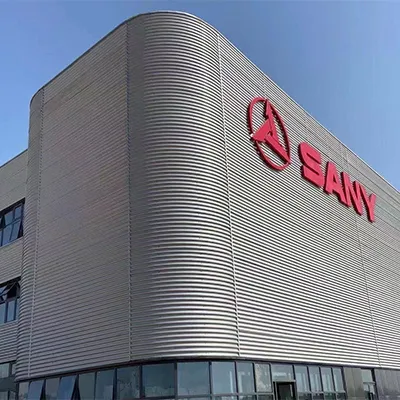

    These corrugated cladding sheets stand out for their wide wave profile, which gives façades a smooth and dynamic look. They can be installed in both horizontal and vertical layouts, giving more flexibility to adapt the façade to different designs. Besides they good appearance, they perform well under wind and seismic stress, which is suitable for large industrial and commercial buildings.

    Applications

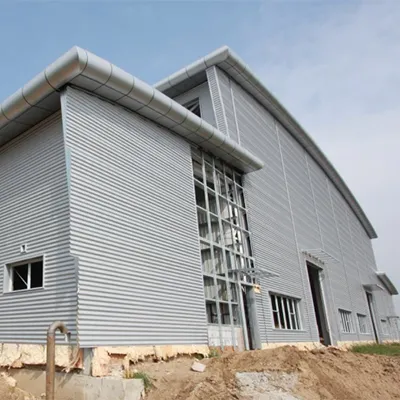

    Widely used for factories, office buildings, shopping centers, hotels, and exhibition facilities, especially in projects that require durability and a distinctive architectural style.

    Highlights & Applications
    • Commonly used on office buildings, commercial façades, and industrial workshop exteriors.
    • Cladding panels are fixed to a galvanized steel framework (≥1.5 mm thick) with a maximum spacing of 1200 mm, providing reliable support.
    • Compatible with both concrete walls and steel structures as the main substrate.
    • Installation is usually done horizontally, using exposed fasteners from bottom to top for proper alignment.
    • Two corrugation styles are available, large-wave and small-wave profiles, to match different designs, from bold and solid to smooth and flowing.

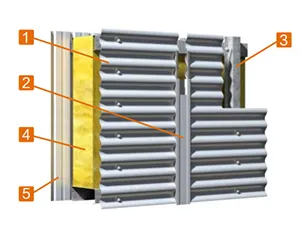

    Components
    Exposed Fastener Metal Wall Panels
    • Façade cladding
    • Joint cover strip
    • Vertical subframe (stud/keel)
    • Insulation layer
    • Liner panel
    Specifications
    Model YX32-130-780
    Effective cover width 780mm
    Overall width of sheet 1000mm
    Thickness 0.4mm-1.0mm
    Length Customizable
    Type of cladding Exposed fastener wall panel
    Installation Horizontal installation,vertical installation
    Material Al-Mg-Mn alloy sheet,pre-painted steel sheet,stainless steel sheet,titanium zinc sheet
    Metal sheet suppliers Baosteel,BlueScope,Yieh Phui,Wah Tung,Alliance Steel,etc.
    Color Standard color + custom color
    Surface coating PE/HDP/PVDF,etc.
    Applications Architectural cladding for walls and roofs
    Lifespan At least 50 years
    Mounting accessories included A full range of shear studs,self-tapping screws,clamps,etc.
    Remarks 1. Professional installation guidance is available to ensure proper assembly
    2. Other sizes or customized designs can be provided upon request
    Features
    • The wide corrugated shape adds depth and a modern character to exterior walls.
    • Flexible installation options allow both vertical and horizontal layouts with a wide color range to match different designs.
    • Made with PVDF-coated aluminum-magnesium-manganese alloy, to ensure long-term weather resistance and minimal maintenance.
    • Strong yet lightweight, corrugated cladding sheets combine a good appearance with reliable performance for demanding projects.
    Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors
    • Available Colors

    Need more colors? Feel free to get in touch!

    Get in Touch

    Tell us about your construction project today!

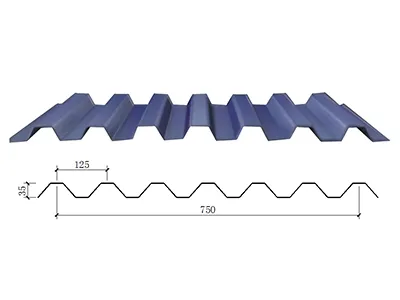

    Related Metal Wall Panels Learn more
    Metal Building Panels
    Discover All Products

    Metal façade cladding is valued because it combines design with protection. While it gives buildings a modern and uniform look, it also shields exterior walls from rain, wind, and corrosion. Since it is lighter than many traditional materials yet strong and durable, it helps improve the lifespan of the structure while reducing future maintenance.

    We offer a wide range of metal wall cladding, covering different architectural and functional needs. Trapezoidal and corrugated profiles are preferred for their strength and easy installation, liner and AG panels create a smoother appearance, while batten profiles highlight vertical lines and add a distinctive design element. Each type of the facade cladding options we offer provides both structural reliability and visual impact.

    Façade cladding can improve both thermal and acoustic performance, especially when panels include insulating cores or protective coatings. Since they help regulate indoor temperature and reduce outside noise, they create more comfortable spaces for schools, hospitals, offices, and other commercial or public buildings, while also supporting energy efficiency.

    Façade cladding is suitable for both new constructions and renovations. In older buildings, façade cladding not only refreshes the appearance but also improves insulation and weather resistance, giving the structure better performance without the need for extensive rebuilding. These features make metal wall cladding a practical and cost-effective solution to extend the life of the façade.

    With proper installation and quality coatings, metal cladding can remain in good condition for decades. Thanks to their resistance to fading, corrosion, and harsh weather, maintaining this type of metal cladding is simple, even in coastal or high-rainfall areas.
