Antique-Style Color-Coated Steel Roofing Tiles
Antique-Style Color-Coated Steel Roofing Tiles

YX40-255-765

Antique-Style Color-Coated Steel Roofing Tiles

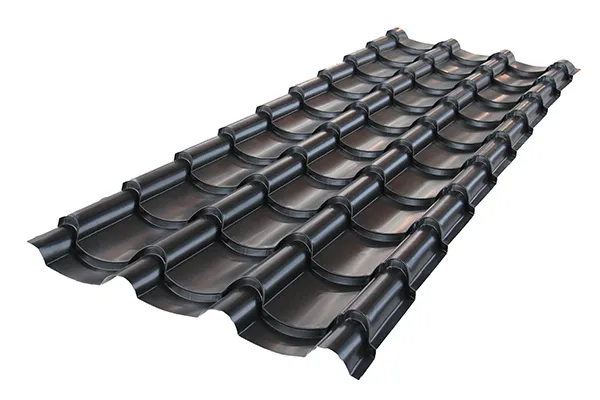

Tile effect roofing sheets combining undulating curves of traditional clay pantiles

  • Effective cover width: 765mm
  • Overall width of sheet: 1000mm
  • Length: 1m-12m (customizable)
  • Thickness: 0.4mm-1.0mm
  • Material: Galvanized steel sheet, galvalume steel sheet, titanium zinc sheet, Al-Mg-Mn alloy sheet
Request a Quote
  • Antique-Style Color-Coated Steel Roofing Tiles
  • Antique-Style Color-Coated Steel Roofing Tiles
  • Antique-Style Color-Coated Steel Roofing Tiles
  • Antique-Style Color-Coated Steel Roofing Tiles

These pantile-style metal tiles are finished with a baked-on coating that keeps their color rich and stable for up to 30 years, so the roof always looks fresh rather than aged. Because they are designed to handle different climates, they hold up well against changing weather conditions. On top of that, the panels are fully recyclable, offering a roofing option that is not only durable but also energy-efficient and environmentally conscious.

Applications

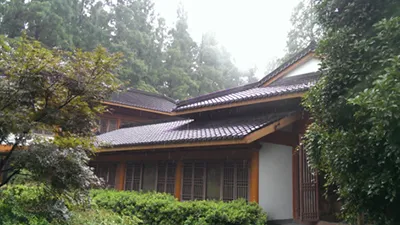

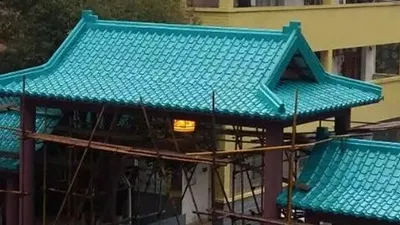

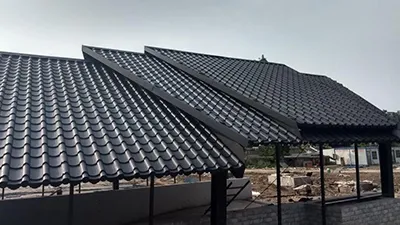

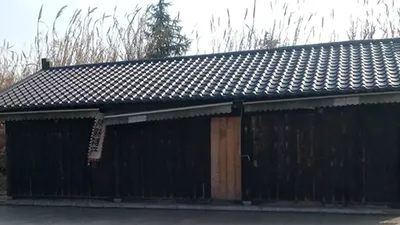

Ideal for residential houses, apartments, villas, hotels, resorts, real estate projects, urban renovation, scenic buildings, and wooden roof structures.
Specifications

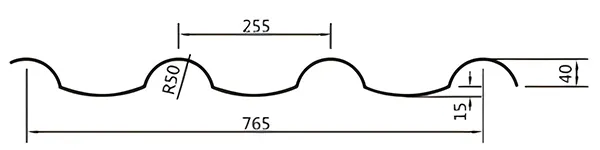

Model YX40-255-765
Effective cover width 765mm
Overall width of sheet 1000mm
Length 1m-12m (customizable)
Thickness 0.4mm-1.0mm
Material Galvanized steel sheet, galvalume steel sheet, titanium zinc sheet, Al-Mg-Mn alloy sheet
Metal sheet suppliers Baosteel, BlueScope, Yieh Phui, Wah Tung, Alliance Steel, etc.
Color Standard color + custom color
Surface coating PE/PVDF, etc.
Accessories included A complete range of drip edge, stop end hip, ridge end cap, round ridge cap, etc.
Remarks 1. Professional installation guidance is available to ensure proper assembly
2. Other sizes or customized designs can be provided upon request
Features
  • These tiles are made from high-quality alloys like aluminum-magnesium-manganese and titanium-zinc, giving them a service life three to four times longer than traditional wave-shaped tiles.
  • They weigh only a tenth of clay tiles, yet they can withstand strong winds, heavy snow, rain, and hail without cracking.
  • The roll-formed metal structure strengthens the entire roof, which also improves seismic resistance.
  • They adapt well to different climates and can last for more than 50 years without the need for maintenance.
Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors
  • Available Colors

Need more colors? Feel free to get in touch!

Get in Touch

Tell us about your construction project today!

Related Metal Roof Panels
Metal Building Panels
Discover All Products

For areas with strong winds, heavy rain, snow, or hail, we recommend metal roofing sheets made from aluminum-magnesium-manganese alloy. With a PVDF coating and roll-formed structure, they offer high durability and help improve the overall seismic performance of the roof.

Stone-coated metal roofing tiles are a great choice for projects that prioritize aesthetics and sustainability. They have a service life of over 50 years, are fully recyclable, and feature a ceramic-coated surface that looks natural and elegant while performing well in different climates.

Yes, several of our metal roofing sheets are suitable for curved or S-shaped roofs. With concealed seam joints and a screw-free finish, they ensure a seamless look and preserve the architectural design.

We offer insulated composite roofing panels that are designed with prefabricated solar interfaces. They allow PV modules to be mounted directly without additional rails or connectors, reducing both material and installation costs while also providing insulation benefits.
